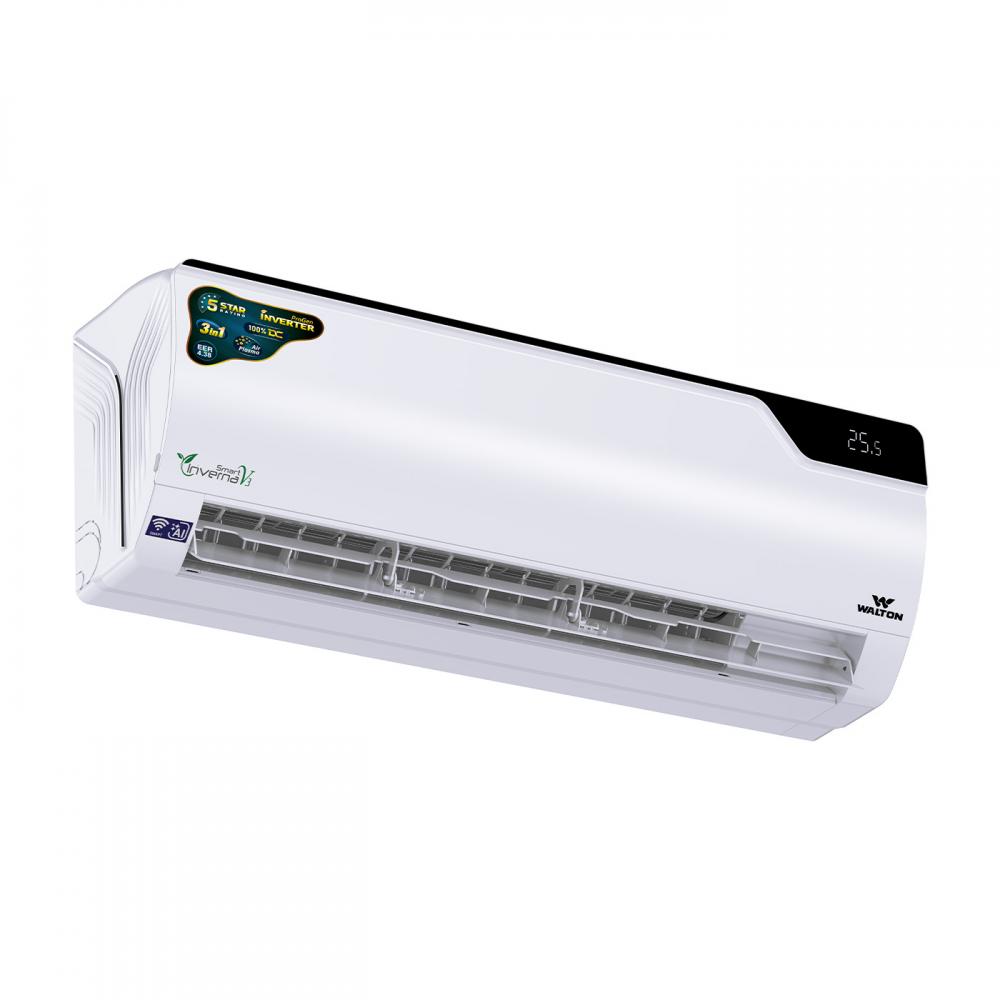

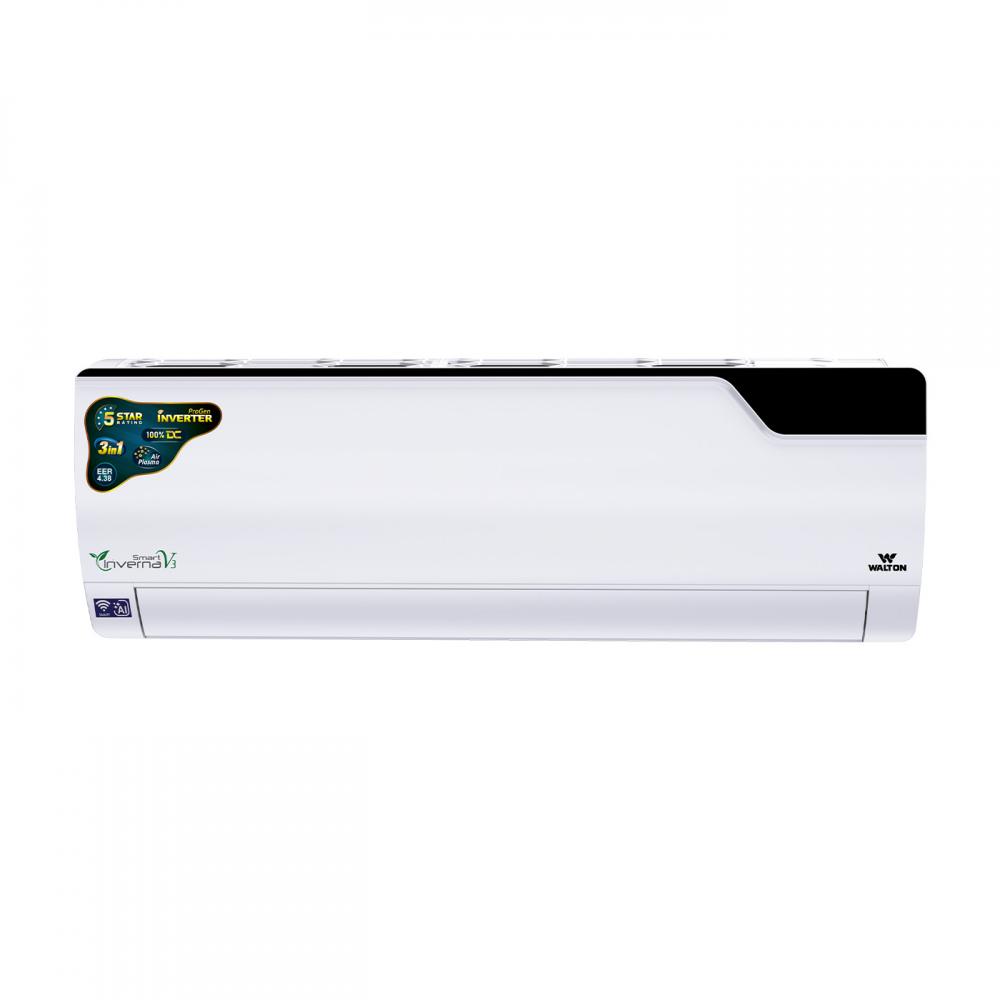

WSI-DIAMOND-12J [FROST CLEAN]

Basic Features

• Air Conditioner Type: Intelligent Inverter

• Function: Cooling

• Cooling Capacity: 12,000 BTU/Hr

• Cooling Capacity: 3,517 Watts

• Capacity: 1 Ton

• Rated Voltage / Frequency: 230V / 50Hz

• Rated Input Power: 1116W

• Rated Current: 4.86A

• EER: 3.15

• Smart Control: Available on Request

Cooling Features

• Compressor Type: Rotary (Inverter)

• Refrigerant Type: R-32

• Refrigerant Amount: 0.43 kg

• Operating Ambient Temperature: 20°C to 55°C

• Evaporator Fin Type: Louvered Fin

• Condenser Type: Copper Tube Condenser

• Condenser Fin Type: Louvered Fin

• Maximum Pipe Length: 10m

Operating Modes & Features

• Turbo Mode (Maximum Cooling): Yes

• ECO Mode (Power Saving): Yes

• Dry Mode: Yes

• Fan Mode: Yes

• Auto Operation: Yes

• Auto Restart: Yes

• Comfort Cooling: Yes

• Speed Settings: Auto / High / Medium / Low

• Timer: Yes

• Sleep Mode: Yes

Remote & Air Deflection

• Display Type: LCD

• Operation / Control: Via IR (Infrared Ray)

• Child Lock: Yes

• Temperature Unit Change: Yes (°C to °F)

• Auto Up-Down Swing: Yes

• Auto Left-Right Swing: Yes

Indoor Unit Dimensions & Weight

• Unit Dimensions (L × W × H): 832 × 296 × 210 mm

• Packing Dimensions: 910 × 365 × 285 mm

• Net Weight: 10 ± 0.5 kg

• Gross Weight: 11.7 ± 0.5 kg

Outdoor Unit Dimensions & Weight

• Unit Dimensions (L × W × H): 770 × 300 × 545 mm

• Packing Dimensions: 807 × 347 × 608 mm

• Net Weight: 19.3 ± 1 kg

• Gross Weight: 22 ± 1 kg

Guarantee & Warranty Information

Product Replacement Guarantee

• Product Replacement Guarantee: 1 Year

• Condition: Applicable in case of manufacturing faults in the compressor.

Residential Usage

• Compressor Guarantee: 12 Years

• Inverter PCB Warranty: 5 Years

• Condenser Warranty: 3 Years

• Spare Parts Support: 3 Years

• After-Sales Service: 2 Years (Free)

Commercial Usage

• Compressor Guarantee: 5 Years

• Inverter PCB Warranty: 2 Years

• Condenser Warranty: 2 Years

• Spare Parts Support: 2 Years

• After-Sales Service: 1 Year (Free)

Warranty Terms & Conditions

This warranty does not cover:

1. Product misuse, neglect, or rental for commercial purposes. The warranty is also invalid if the product is repaired, replaced, or modified by unauthorized personnel.

2. Removal, alteration, or duplication of the product serial number or barcode.

3. Product defects caused by incorrect or negligent storage or use.

4. Failure caused by voltage conditions, blown fuses, or inadequate or interrupted electrical service.

5. Damage caused by thunder, lightning, water ingress, fire, or obstruction of indoor or outdoor airflow.

6. Damage or failure caused by rats, cockroaches, insects, or similar pests.

7. Installation in hazardous environments involving chemical fumes or corrosive substances such as acid, sulfur, hydrogen peroxide, sodium sulfate, hydrogen sulfide, chlorides, bleaching powder, ammonia, chlorine, IPA, thinner, etc.

8. Installation in kitchens, oily environments, or near heat sources.

Inverter PCB Warranty – Void Conditions

• Improper Installation: Installation by unauthorized personnel, use of non-standard components, or failure to follow manufacturer guidelines.

• Unauthorized Repairs / Modifications: Repairs, modifications, or use of non-authenticated parts without prior approval.

• Physical Damage: Damage caused by external impact, mishandling, moisture, or burnt components due to short circuits.

• Electrical Issues: Damage caused by lightning, improper power supply, voltage fluctuations, or overloading.

• Environmental Conditions: Operation outside the recommended temperature or humidity range, water exposure, or corrosion caused by pollutants.

• Neglect / Misuse: Lack of regular maintenance, improper use, or continued operation after detecting a fault.

• Tampering: Alteration or removal of serial numbers, warranty labels, or other identification marks.

• Force Majeure: Natural disasters, accidents, or other unforeseen external events.

• Improper Accessories: Use of uncertified external devices, wiring, or connectors.

• Documentation Issues: Failure to provide proof of purchase, digital warranty registration, or service records when required.

Important Warranty Notes

• During the warranty period, products or parts will not be replaced if they are repairable.

• If repair is not possible, replacement will be provided according to the applicable warranty policy.

• This warranty covers manufacturing defects only, subject to verification by authorized company personnel.

• After-sales service is available only through company-authorized service points.

• The authority reserves the right to change, extend, correct, suspend, or cancel the warranty period without prior notice.

• From August 1, 2025, all inverter air conditioners come with a 5-year Inverter PCB Warranty and 2-year After-Sales Service Warranty.

• For units purchased before August 1, 2025, a 3-year Inverter PCB Warranty and 1-year After-Sales Service Warranty will apply.

• From April 1, 2025 to July 31, 2025, the 5-year Inverter PCB Warranty applied only to the INVERNA, ACC, and MARLINE series.

• During the 2-year After-Sales Service Warranty period, a maximum of two free cleaning services will be provided upon customer request.
